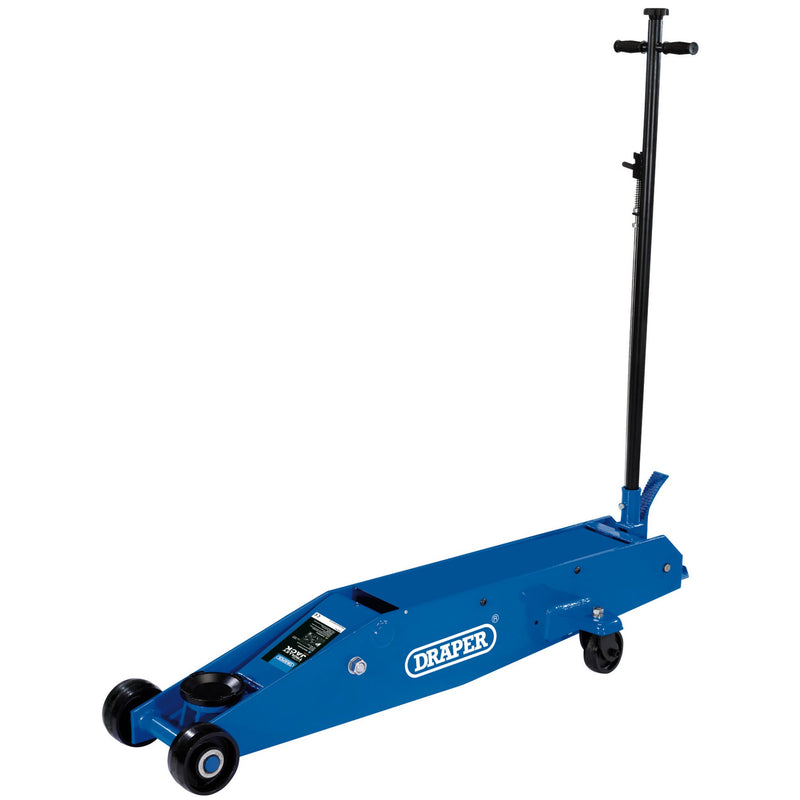

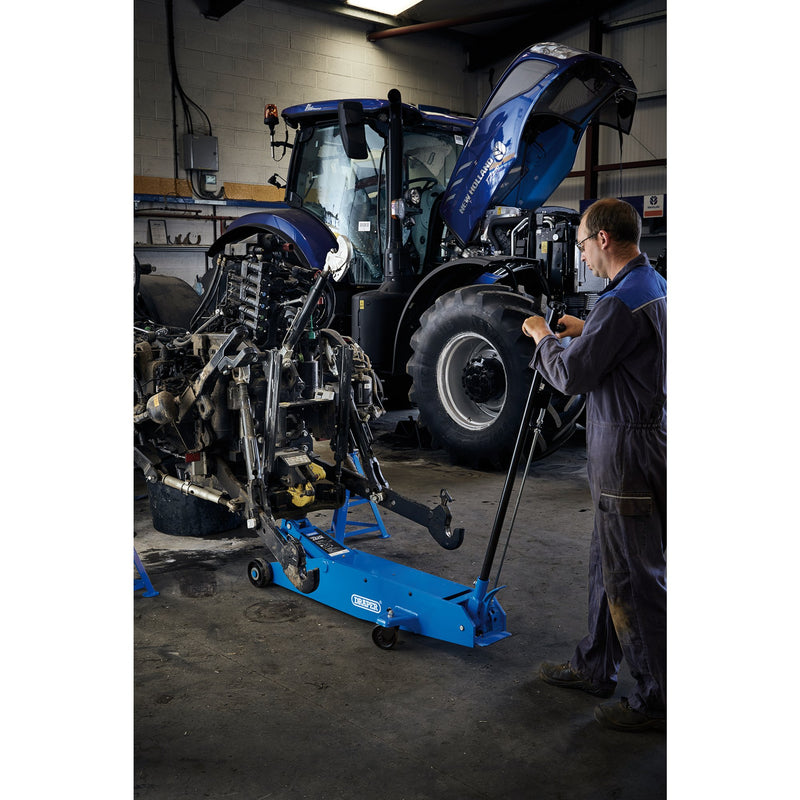

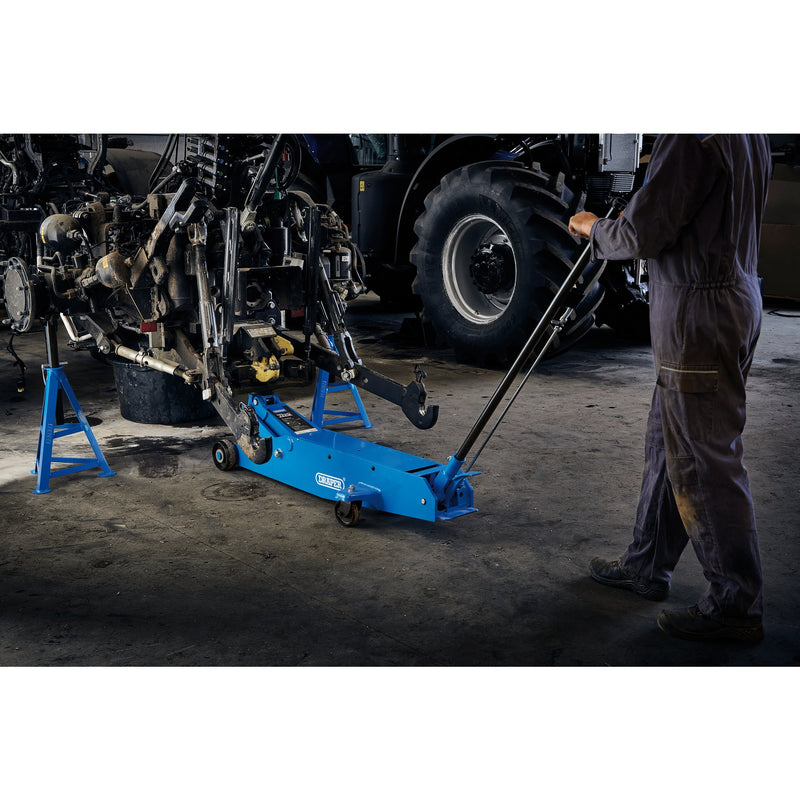

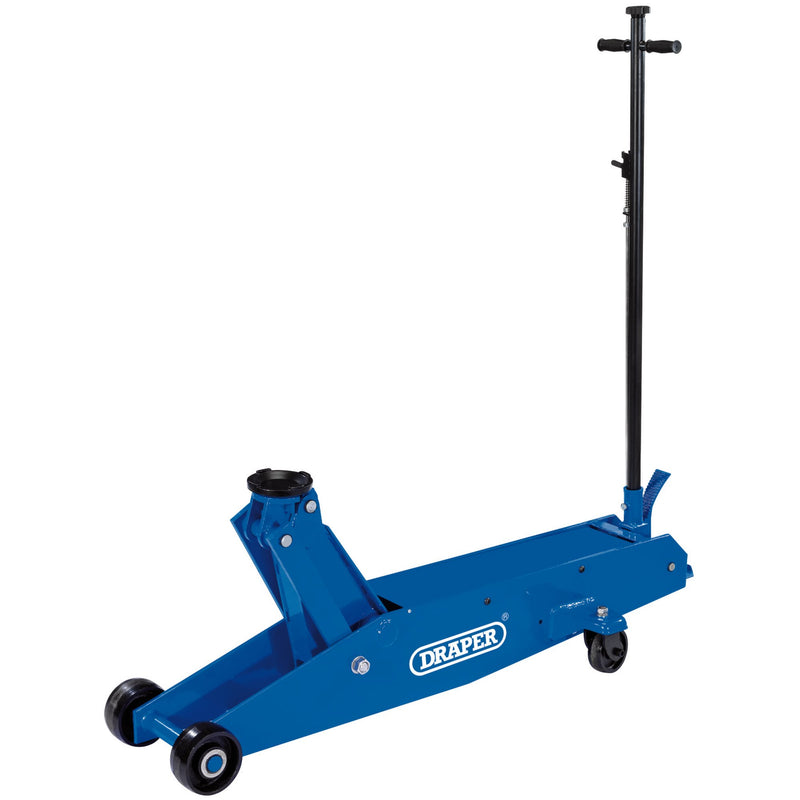

Draper 03494 Long Chassis Trolley Jack, 10 Tonne
Draper 03494 Long Chassis Trolley Jack, 10 Tonne
Draper 03494 Long Chassis Trolley Jack, 10 Tonne
Draper 03494 Long Chassis Trolley Jack, 10 Tonne

Draper 03494 Long Chassis Trolley Jack, 10 Tonne

Shop All Draper
SKU 03494-DRA
Save 1% Save 1%
£855.00
£855.00 - £855.00
£855.00
£844.99
£844.99 - £844.99
£844.99
Availability:
1+ in stock, ready to be shipped

Est Delivery 3 - 7 Working Day

Shipping information


We work hard to get your order out quickly and securely.

  • Fast Dispatch – Orders are processed promptly once placed.
  • Trusted Couriers – We use reliable delivery partners.
  • Clear Costs – Shipping is calculated at checkout, based on size and weight.
  • Peace of Mind – We’ll keep you updated every step of the way.
Returns & warranty
  • 28 Days to Return – If it’s not right, just bring it back in its original condition.
  • Quick Refunds – Once we’ve checked your return, we’ll refund you promptly.
  • Clear & Fair – Some items (like cut-to-size or opened packaging) can’t be returned, but we’ll always let you know upfront.

Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.

Features

  • Long reach chassis
  • Quick-lift foot pedal
  • Large saddle aids positioning
  • Handle can be locked in three positions
  • Release valve prevents accidental lowering
  • Rear swivelling castors with toe plate increases manoeuvrability

Specifications

Capacity 10 Tonne
Lifting range 170-570mm
Saddle diameter 130mm
Handle length 1,220mm
Chassis length 1,535mm
Weight 125kg

Dimensions & Weight

Weight 125.000 kg
Length 1680 mm
Width 535 mm
Height 320 mm

Standards & Warranty

  • Manufactured to EN1494 Specification
  • 12 months warranty

Part No: TJ10LR
Barcode: 5010559034949
