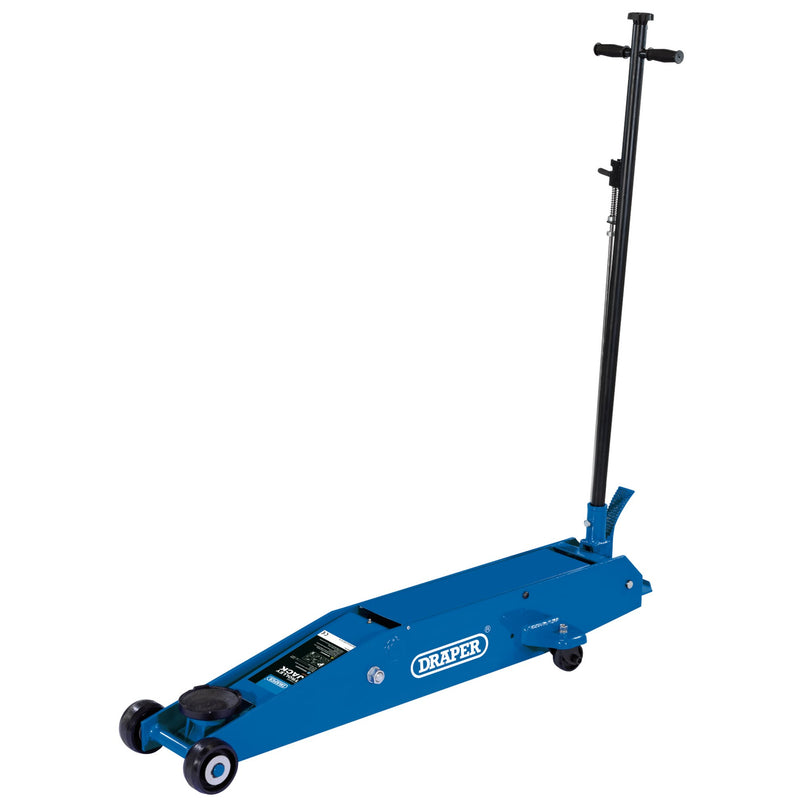

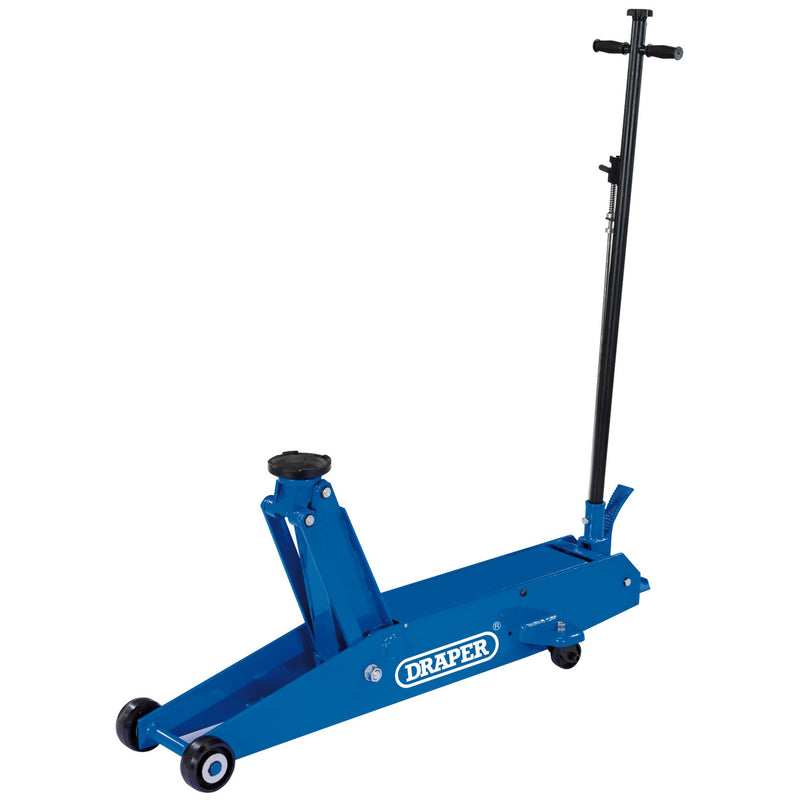

Draper 03467 Long Chassis Trolley Jack, 5 Tonne
Draper 03467 Long Chassis Trolley Jack, 5 Tonne

Draper 03467 Long Chassis Trolley Jack, 5 Tonne

Shop All Draper
SKU 03467-DRA
Save 0% Save 0%
£665.00
£665.00 - £665.00
£665.00
£661.99
£661.99 - £661.99
£661.99
Availability:
1+ in stock, ready to be shipped

Est Delivery 3 - 7 Working Day

Shipping information


We work hard to get your order out quickly and securely.

  • Fast Dispatch – Orders are processed promptly once placed.
  • Trusted Couriers – We use reliable delivery partners.
  • Clear Costs – Shipping is calculated at checkout, based on size and weight.
  • Peace of Mind – We’ll keep you updated every step of the way.
Returns & warranty
  • 28 Days to Return – If it’s not right, just bring it back in its original condition.
  • Quick Refunds – Once we’ve checked your return, we’ll refund you promptly.
  • Clear & Fair – Some items (like cut-to-size or opened packaging) can’t be returned, but we’ll always let you know upfront.

Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.

Features

  • Long reach chassis
  • Quick-lift foot pedal
  • Large saddle aids positioning
  • Locking facility allows the handle to be locked in three positions
  • Release valve prevents accidental lowering
  • Rear swivelling castors with toe plate increases manoeuvrability

Specifications

Capacity 5 Tonne
Lifting range 160-560mm
Saddle diameter 130mm
Handle length 1,220mm
Chassis length 1,410mm
Weight 85kg

Dimensions & Weight

Weight 85.000 kg
Length 1550 mm
Width 430 mm
Height 345 mm

Standards & Warranty

  • Manufactured to EN1494 Specification
  • 12 months warranty

Part No: TJ5LR
Barcode: 5010559034673
